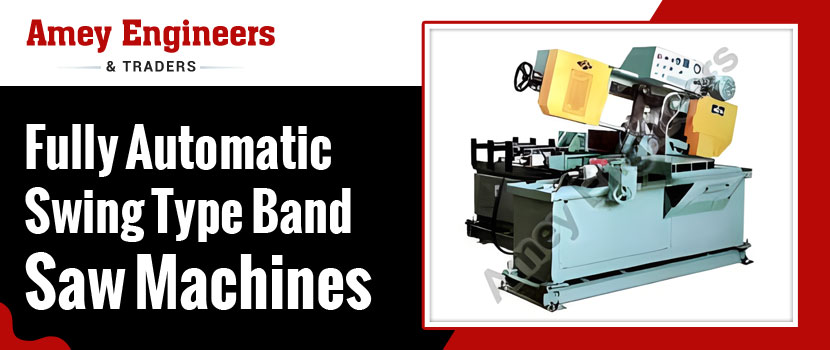

Fully Automatic Swing Type Band Saw Machines


Fully Automatic Swing Type Band Saw Machines

Our range of Fully Automatic Swing Type Band Saw Machine (Model FCAF-245) is torsion and vibration free.

Some of the Features includes :-
  • Complete hydraulic system
  • Hydraulic feed with automatic controls of cutting pressure and overload protection
  • Complete coolant system with pump & piping
  • Power driven band brush for chip removal
  • Blade speed indicator chart
  • Pre selection of cuts via electric counter
  • One Bimetal Band Saw Blade 3760 X 27 X 0.9 mm
  • Operating tools & spanners


Click Here To View Technical Detail


Specification

Cutting Capacity 245 ø, 230 x 230
(mm square)
Saw Blade Size Length: 3760 mm. Width: 27 mm. Thickness: 0.9 mm.
Feeding Length Range 0-600 mm./400 mm
Drive Motor 2.2 kW
Band Speed (Infinitely Variable) 24-100 m/min.
Hydraulic Drive 0.75 kW.
Floor Area 1875x2900 mm.
Machine Height 1750 mm.
Machine Weight Net 950 kg.
Band Tension Manual
Head Elevation,Clamping and Feed Vice Hydraulic
Saw Feed Control Hydraulic
Due to continuous improvement of the product, SPM reserves all rights to change the above specifications without any prior notice
